Transformer 代码框架

1. import math
2. import pandas as pd
3. import torch
4. from torch import nn
5. from d2l import torch as d2l

复制代码

基于位置的前馈网络

1. class PositionWiseFFN(nn.Module):
2.     """基于位置的前馈网络"""
3.     def __init__(self, ffn_num_input, ffn_num_hiddens, ffn_num_outputs,
4.                  **kwargs):
5.         super(PositionWiseFFN, self).__init__(**kwargs)
6.         self.dense1 = nn.Linear(ffn_num_input, ffn_num_hiddens)
7.         self.relu = nn.ReLU()
8.         self.dense2 = nn.Linear(ffn_num_hiddens, ffn_num_outputs)
10.     def forward(self, X):
11.         return self.dense2(self.relu(self.dense1(X)))

复制代码

改变张量的最里层维度的尺寸

1. ffn = PositionWiseFFN(4, 4, 8)
2. ffn.eval()
3. ffn(torch.ones((2, 3, 4)))[0]

复制代码

对比不同维度的层规范化和批量规范化的效果

1. ln = nn.LayerNorm(2)
2. bn = nn.BatchNorm1d(2)
3. X = torch.tensor([[1, 2], [2, 3]], dtype=torch.float32)
4. # 在训练模式下计算X的均值和方差
5. print('layer norm:', ln(X), '\nbatch norm:', bn(X))

复制代码

使用残差连接和层归一化

1. class AddNorm(nn.Module):
2.     """残差连接后进行层规范化"""
3.     def __init__(self, normalized_shape, dropout, **kwargs):
4.         super(AddNorm, self).__init__(**kwargs)
5.         self.dropout = nn.Dropout(dropout)
6.         self.ln = nn.LayerNorm(normalized_shape)
8.     def forward(self, X, Y):
9.         return self.ln(self.dropout(Y) + X)

复制代码

加法操作后输出张量的形状相同

1. add_norm = AddNorm([3, 4], 0.5)
2. add_norm.eval()
3. add_norm(torch.ones((2, 3, 4)), torch.ones((2, 3, 4))).shape

复制代码

实现编码器中的一个层

1. class EncoderBlock(nn.Module):
2.     """Transformer编码器块"""
3.     def __init__(self, key_size, query_size, value_size, num_hiddens,
4.                  norm_shape, ffn_num_input, ffn_num_hiddens, num_heads,
5.                  dropout, use_bias=False, **kwargs):
6.         super(EncoderBlock, self).__init__(**kwargs)
7.         self.attention = d2l.MultiHeadAttention(
8.             key_size, query_size, value_size, num_hiddens, num_heads, dropout,
9.             use_bias)
10.         self.addnorm1 = AddNorm(norm_shape, dropout)
11.         self.ffn = PositionWiseFFN(
12.             ffn_num_input, ffn_num_hiddens, num_hiddens)
13.         self.addnorm2 = AddNorm(norm_shape, dropout)
15.     def forward(self, X, valid_lens):
16.         Y = self.addnorm1(X, self.attention(X, X, X, valid_lens))
17.         return self.addnorm2(Y, self.ffn(Y))

复制代码

Transformer编码器中的任何层都不会改变其输入的形状

1. X = torch.ones((2, 100, 24))
2. valid_lens = torch.tensor([3, 2])
3. encoder_blk = EncoderBlock(24, 24, 24, 24, [100, 24], 24, 48, 8, 0.5)
4. encoder_blk.eval()
5. encoder_blk(X, valid_lens).shape

复制代码

Transformer编码器

1. class TransformerEncoder(d2l.Encoder):
2.     """Transformer编码器"""
3.     def __init__(self, vocab_size, key_size, query_size, value_size,
4.                  num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
5.                  num_heads, num_layers, dropout, use_bias=False, **kwargs):
6.         super(TransformerEncoder, self).__init__(**kwargs)
7.         self.num_hiddens = num_hiddens
8.         self.embedding = nn.Embedding(vocab_size, num_hiddens)
9.         self.pos_encoding = d2l.PositionalEncoding(num_hiddens, dropout)
10.         self.blks = nn.Sequential()
11.         for i in range(num_layers):
12.             self.blks.add_module("block"+str(i),
13.                 EncoderBlock(key_size, query_size, value_size, num_hiddens,
14.                              norm_shape, ffn_num_input, ffn_num_hiddens,
15.                              num_heads, dropout, use_bias))
17.     def forward(self, X, valid_lens, *args):
18.         # 因为位置编码值在-1和1之间，
19.         # 因此嵌入值乘以嵌入维度的平方根进行缩放，
20.         # 然后再与位置编码相加。
21.         X = self.pos_encoding(self.embedding(X) * math.sqrt(self.num_hiddens))
22.         self.attention_weights = [None] * len(self.blks)
23.         for i, blk in enumerate(self.blks):
24.             X = blk(X, valid_lens)
25.             self.attention_weights[
26.                 i] = blk.attention.attention.attention_weights
27.         return X

复制代码

创建一个两层的Transformer编码器

1. encoder = TransformerEncoder(
2.     200, 24, 24, 24, 24, [100, 24], 24, 48, 8, 2, 0.5)
3. encoder.eval()
4. encoder(torch.ones((2, 100), dtype=torch.long), valid_lens).shape

复制代码

Transformer解码器也是由多个相同的层组成

1. class DecoderBlock(nn.Module):
2.     """解码器中第i个块"""
3.     def __init__(self, key_size, query_size, value_size, num_hiddens,
4.                  norm_shape, ffn_num_input, ffn_num_hiddens, num_heads,
5.                  dropout, i, **kwargs):
6.         super(DecoderBlock, self).__init__(**kwargs)
7.         self.i = i
8.         self.attention1 = d2l.MultiHeadAttention(
9.             key_size, query_size, value_size, num_hiddens, num_heads, dropout)
10.         self.addnorm1 = AddNorm(norm_shape, dropout)
11.         self.attention2 = d2l.MultiHeadAttention(
12.             key_size, query_size, value_size, num_hiddens, num_heads, dropout)
13.         self.addnorm2 = AddNorm(norm_shape, dropout)
14.         self.ffn = PositionWiseFFN(ffn_num_input, ffn_num_hiddens,
15.                                    num_hiddens)
16.         self.addnorm3 = AddNorm(norm_shape, dropout)
18.     def forward(self, X, state):
19.         enc_outputs, enc_valid_lens = state[0], state[1]
20.         # 训练阶段，输出序列的所有词元都在同一时间处理，
21.         # 因此state[2][self.i]初始化为None。
22.         # 预测阶段，输出序列是通过词元一个接着一个解码的，
23.         # 因此state[2][self.i]包含着直到当前时间步第i个块解码的输出表示
24.         if state[2][self.i] is None:
25.             key_values = X
26.         else:
27.             key_values = torch.cat((state[2][self.i], X), axis=1)
28.         state[2][self.i] = key_values
29.         if self.training:
30.             batch_size, num_steps, _ = X.shape
31.             # dec_valid_lens的开头:(batch_size,num_steps),
32.             # 其中每一行是[1,2,...,num_steps]
33.             dec_valid_lens = torch.arange(
34.                 1, num_steps + 1, device=X.device).repeat(batch_size, 1)
35.         else:
36.             dec_valid_lens = None
38.         # 自注意力
39.         X2 = self.attention1(X, key_values, key_values, dec_valid_lens)
40.         Y = self.addnorm1(X, X2)
41.         # 编码器－解码器注意力。
42.         # enc_outputs的开头:(batch_size,num_steps,num_hiddens)
43.         Y2 = self.attention2(Y, enc_outputs, enc_outputs, enc_valid_lens)
44.         Z = self.addnorm2(Y, Y2)
45.         return self.addnorm3(Z, self.ffn(Z)), state

复制代码

编码器和解码器的特征维度都是num_hiddens

1. decoder_blk = DecoderBlock(24, 24, 24, 24, [100, 24], 24, 48, 8, 0.5, 0)
2. decoder_blk.eval()
3. X = torch.ones((2, 100, 24))
4. state = [encoder_blk(X, valid_lens), valid_lens, [None]]
5. decoder_blk(X, state)[0].shape

复制代码

Transformer解码器

1. class TransformerDecoder(d2l.AttentionDecoder):
2.     def __init__(self, vocab_size, key_size, query_size, value_size,
3.                  num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
4.                  num_heads, num_layers, dropout, **kwargs):
5.         super(TransformerDecoder, self).__init__(**kwargs)
6.         self.num_hiddens = num_hiddens
7.         self.num_layers = num_layers
8.         self.embedding = nn.Embedding(vocab_size, num_hiddens)
9.         self.pos_encoding = d2l.PositionalEncoding(num_hiddens, dropout)
10.         self.blks = nn.Sequential()
11.         for i in range(num_layers):
12.             self.blks.add_module("block"+str(i),
13.                 DecoderBlock(key_size, query_size, value_size, num_hiddens,
14.                              norm_shape, ffn_num_input, ffn_num_hiddens,
15.                              num_heads, dropout, i))
16.         self.dense = nn.Linear(num_hiddens, vocab_size)
18.     def init_state(self, enc_outputs, enc_valid_lens, *args):
19.         return [enc_outputs, enc_valid_lens, [None] * self.num_layers]
21.     def forward(self, X, state):
22.         X = self.pos_encoding(self.embedding(X) * math.sqrt(self.num_hiddens))
23.         self._attention_weights = [[None] * len(self.blks) for _ in range (2)]
24.         for i, blk in enumerate(self.blks):
25.             X, state = blk(X, state)
26.             # 解码器自注意力权重
27.             self._attention_weights[0][
28.                 i] = blk.attention1.attention.attention_weights
29.             # “编码器－解码器”自注意力权重
30.             self._attention_weights[1][
31.                 i] = blk.attention2.attention.attention_weights
32.         return self.dense(X), state
34.     @property
35.     def attention_weights(self):
36.         return self._attention_weights

复制代码

训练

1. num_hiddens, num_layers, dropout, batch_size, num_steps = 32, 2, 0.1, 64, 10
2. lr, num_epochs, device = 0.005, 200, d2l.try_gpu()
3. ffn_num_input, ffn_num_hiddens, num_heads = 32, 64, 4
4. key_size, query_size, value_size = 32, 32, 32
5. norm_shape = [32]

复制代码

1. train_iter, src_vocab, tgt_vocab = d2l.load_data_nmt(batch_size, num_steps)

复制代码

1. encoder = TransformerEncoder(
2.     len(src_vocab), key_size, query_size, value_size, num_hiddens,
3.     norm_shape, ffn_num_input, ffn_num_hiddens, num_heads,
4.     num_layers, dropout)

复制代码

1. decoder = TransformerDecoder(
2.     len(tgt_vocab), key_size, query_size, value_size, num_hiddens,
3.     norm_shape, ffn_num_input, ffn_num_hiddens, num_heads,
4.     num_layers, dropout)

复制代码

1. net = d2l.EncoderDecoder(encoder, decoder)

复制代码

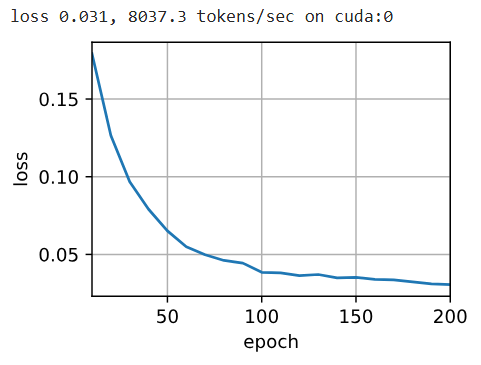

1. d2l.train_seq2seq(net, train_iter, lr, num_epochs, tgt_vocab, device)

复制代码

1. engs = ['go .', "i lost .", 'he\'s calm .', 'i\'m home .']
2. fras = ['va !', 'j\'ai perdu .', 'il est calme .', 'je suis chez moi .']

复制代码

1. for eng, fra in zip(engs, fras):
2.     translation, dec_attention_weight_seq = d2l.predict_seq2seq(
3.         net, eng, src_vocab, tgt_vocab, num_steps, device, True)
4.     print(f'{eng} => {translation}, ',
5.           f'bleu {d2l.bleu(translation, fra, k=2):.3f}')

复制代码

1. enc_attention_weights = torch.cat(net.encoder.attention_weights, 0).reshape((num_layers, num_heads,
2.     -1, num_steps))
3. enc_attention_weights.shape

复制代码

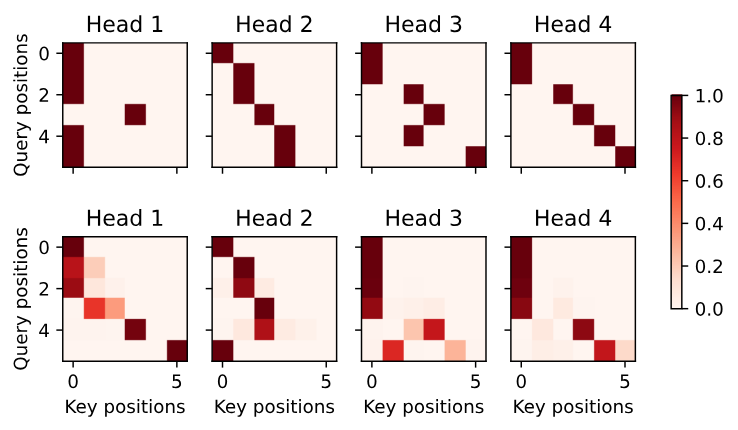

1. d2l.show_heatmaps(
2.     enc_attention_weights.cpu(), xlabel='Key positions',
3.     ylabel='Query positions', titles=['Head %d' % i for i in range(1, 5)],
4.     figsize=(7, 3.5))

复制代码

为了可视化解码器的自注意力权重和“编码器－解码器”的注意力权重，我们需要完成更多的数据操作工作

1. dec_attention_weights_2d = [head[0].tolist()
2.                             for step in dec_attention_weight_seq
3.                             for attn in step for blk in attn for head in blk]
4. dec_attention_weights_filled = torch.tensor(
5.     pd.DataFrame(dec_attention_weights_2d).fillna(0.0).values)
6. dec_attention_weights = dec_attention_weights_filled.reshape((-1, 2, num_layers, num_heads, num_steps))
7. dec_self_attention_weights, dec_inter_attention_weights = \
8.     dec_attention_weights.permute(1, 2, 3, 0, 4)
9. dec_self_attention_weights.shape, dec_inter_attention_weights.shape

复制代码

1. # Plusonetoincludethebeginning-of-sequencetoken

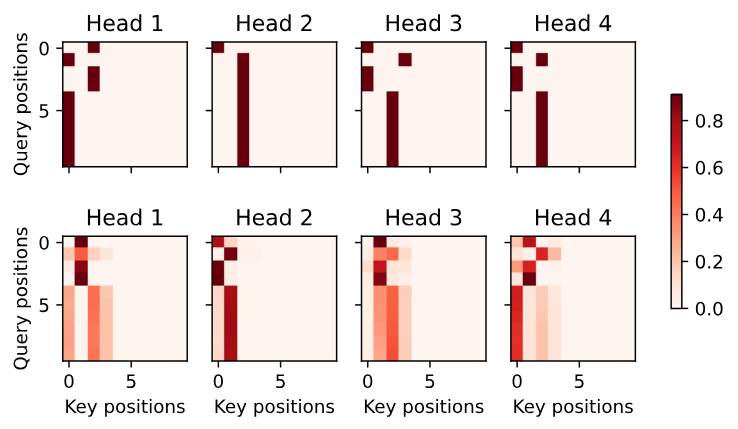

2. d2l.show_heatmaps(
3.     dec_self_attention_weights[:, :, :, :len(translation.split()) + 1],
4.     xlabel='Key positions', ylabel='Query positions',
5.     titles=['Head %d' % i for i in range(1, 5)], figsize=(7, 3.5))

复制代码

​
输出序列的查询不会与输入序列中填充位置的词元进行注意力计算

1. d2l.show_heatmaps(
2.     dec_inter_attention_weights, xlabel='Key positions',
3.     ylabel='Query positions', titles=['Head %d' % i for i in range(1, 5)],
4.     figsize=(7, 3.5))

复制代码

​
